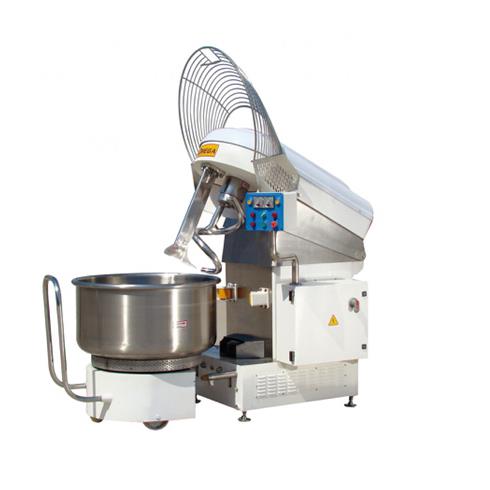

Removable Bowl Spiral Dough Mixer

Removable Bowl Spiral Dough Mixer

Product Name: Removable Bowl Spiral Dough Mixer Application: Food industry Country Of Origin: China Condition: New Classification: Dough Mixer BEM and SMR Series Removable Bowl Spiral Dough Mixer are heavy duty mixer with mobile bowl and two motors designed for industrial bakeries. When starting...

Parameter

Product Name: Removable Bowl Spiral Dough Mixer
Application: Food industry
Country Of Origin: China
Condition: New
Classification: Dough Mixer

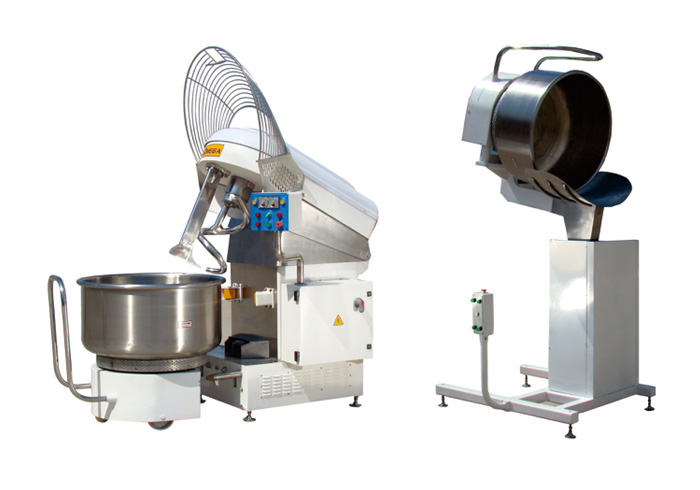

BEM and SMR Series Removable Bowl Spiral Dough Mixer are heavy duty mixer with mobile bowl and two motors designed for industrial bakeries. When starting the machine the mixing head is lowered and the bowl is slightly raised and automatically positioned to the drive unit.
The bowl rotation is guided by a special thrust roller assembly composed of rubber friction wheels, while the milled border of the bowl guarantees the necessary grip, even in the presence of fatty mixtures.

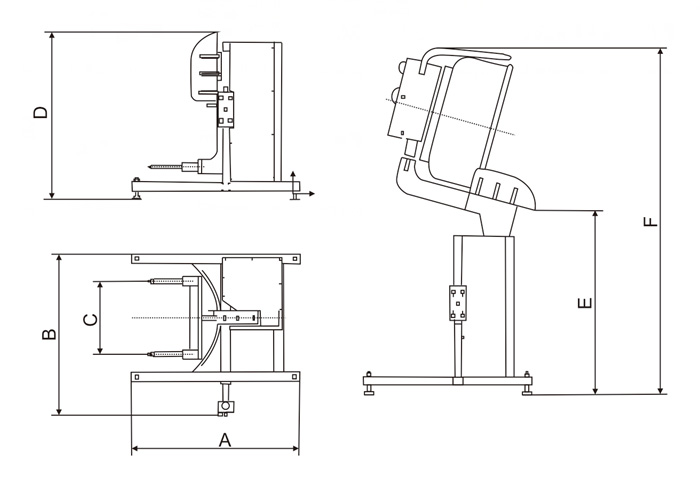

1. Parameters of BEM series:

Model

BEM130

BEM160-200

BEM250-300

Voltage(V)

400V/50HZ/3PH

Power(kw)

1.1

1.5

2.2

Maximum Lifting Capacity(kg)

330

450

560

Dimensions

A(mm)

1380

1410

1450

B(mm)

1360

1360

1360

C(mm)

610

610

610

D(mm)

1400

1410

1430

E(mm)

1560

1540

1530

Reference Dimension F(mm)

2850

2900

2980

Weight(kg)

160

180

200

The dimension of C can be tailored according to the customers'demands.

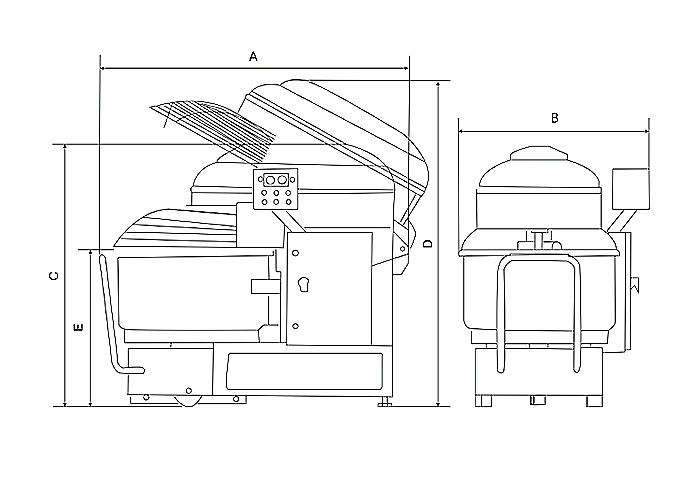

2. Parameters of SMR series:

Model



SMR130

SMR160

SMR200

SMR250

SMR300

Dough capacity(min./max)


kg

10/130

10/160

10/200

15/250

20/300









Flour capacity(min./max)


kg

6/80

6/100

6/125

9/150

12/185

Bowl volume


lt

205

260

285

380

470

Spiral turns 1st/2ndspeed(50/60hz)


rpm

92.5/185

92.5/185

92.5/185

92.5/185

92.5/185

Bowl turns speed(50/60hz)


rpm

15

15

15

15

15

Motor power 1st speed


kw

3

4

4

5

5

Motor power 2nd speed


kw

6

9

9

11

11

Spiral bar diameter


mm

48

48

48

58

58

Height from bowl lip

E

mm

848

881

931

1006

1056

Total length

A

mm

1678

1867

1867

1960

1960

Total width

B

mm

968

1174

1174

1241

1241

Total height

C/D

mm

1524/1892

1562/1953

1740/2148

1740/2148

1740/2148

Net weight


kg

900

1250

1300

1380

1420

capacity determined in view of% liquid/flour equal to 60

Supplied standard equipment:
1515_副本.jpg Bowl, contrast column, safety guard and flour screen made of PP.
1515_副本.jpg Two timers setting the working time with automatic by Italy SITEC and the electrical control components made by SCHNEIDER.
1515_副本.jpg Spiral made of stainless steel.
1515_副本.jpg Selector for reverse bowl rotation device at 1st speed.
1515_副本.jpg Movement transmission through pulleis and GATES belts.
1515_副本.jpg Head lifting/ descent and release/ connection of the trolley through oil-pressure cylinders.
1515_副本.jpg Overvoltage and overload motor protection.
1515_副本.jpg We can provide the following type of Power according to customers'demands: Tension 380 V - frequency 50 Hz - 3 phases, or tension 230 V- frequency 50 Hz - 3 phases, tension 220 V- frequency 60 Hz - 3 phases,tension 380 V- frequency 60 Hz - 3 phases.


1515_副本.jpg With plastic-dipping surface, owing excellent corrosion resistance and appearance.
1515_副本.jpg Twin-timer version: The mixing time can be preset for each speed with automatic change from slow to fast speed.
