Self-tipping Spiral Dough Mixer

Product Name: Self-tipping Spiral Dough Mixer Application: Food industry Country Of Origin: China Condition: New Classification: Dough Mixer The Self-tipping Spiral Dough Mixer consists of a fixed bowl mixer and a hydraulic elevator system which can tip the dough onto table-top or on dough...

Send Inquiry

Parameter

Product Name: Self-tipping Spiral Dough Mixer
Application: Food industry
Country Of Origin: China
Condition: New
Classification: Dough Mixer

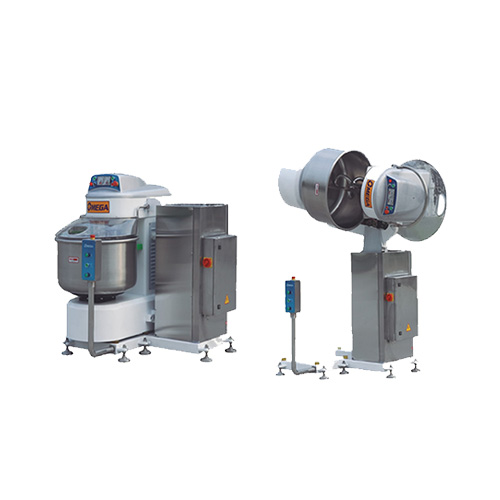

The Self-tipping Spiral Dough Mixer consists of a fixed bowl mixer and a hydraulic elevator system which can tip the dough onto table-top or on dough dividers'hoppers.

Once the stainless steel grill which protects the bowl has been raised, the machine can be tipped up to the designed unloading height. The bowl jog command facilitates unloading of the dough.
A simple mechanical device with electrical control allows the choice of which side to discharge avoiding the use of cumbersome levers as optional.


Model

SMT100

SMT130

SMT160

SMT200

SMT250

SMT300

Voltage

400/50HZ/3PH

Power of
main motor(kw)

Low speed

2.9

3

4

4

5

5

High speed

4.75

6

9

9

11

11

Rotating Speed
of the Auger(r/min)

Low speed

92.5

92.5

92.5

92.5

92.5

92.5

High speed

185

185

185

185

185

185

Diameter of the Auger(mm)

48

48

48

48

58

58

Capacity

Dough Capacity
(kg)

8-100

10-130

10-160

10-200

15-250

20-300

Flour Capacity
(kg)

5-62

6-80

6-100

6-125

9-150

12-185

Watering Capacity(kg)

3-38

4-50

4-60

4-75

6-100

8-115

Minimum proportion
of water to Flour(%)

40

40

40

40

40

40

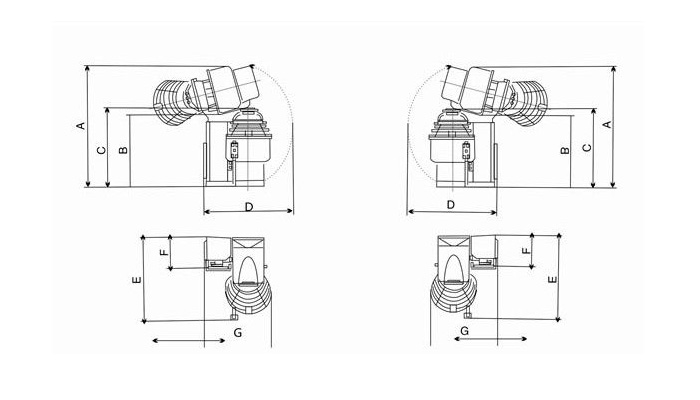

Dimensions

A(mm)

2400

2495

2500

2500

2580

2650

B(mm)

1400

1500

1490

1485

1495

1500

C(mm)

1615

1615

1625

1625

1685

1685

D(mm)

1610

1610

1700

1850

1960

2010

E(mm)

1600

1635

1635

1725

1725

1750

F(mm)

630

630

630

630

630

630

G(mm)

1250

1280

1300

1340

1400

1480

Weight(kg)

800

1150

1230

1480

1500

1550

1515_副本.jpg With plastic-dipping surface, owing excellent corrosion resistance and appearance.
1515_副本.jpg With overload protection, avoiding the equipment damage inabnormal conditions.
1515_副本.jpg High strength belt is introduced to Transmission.
1515_副本.jpg The Auger is made of High Strength Stainless Steel, able to wear well.
1515_副本.jpg The Bowl and Shield are made of Stainless Steel AISI304.
1515_副本.jpg Equipped with both manual and automatic control model for the conversion between high and low speed.
1515_副本.jpg Using Italian brand the SITES as Double speed time controller,easy to set the speed to run time.
1515_副本.jpg We can provide the following type of power according to customer's demands: 230v/ 50Hz/ 3PH.
